FCV-M/MCV-M

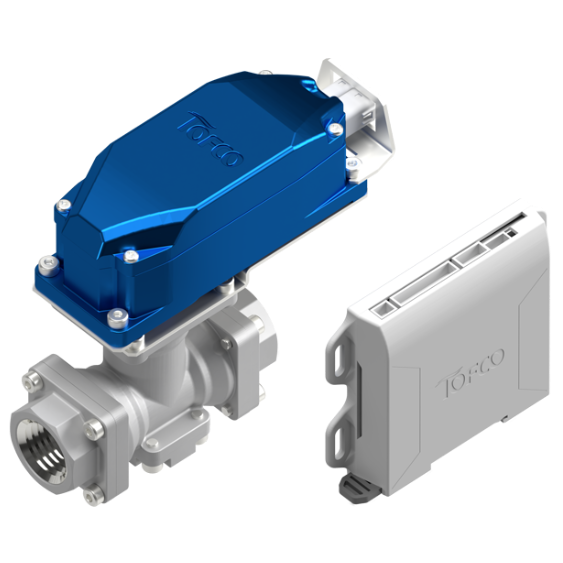

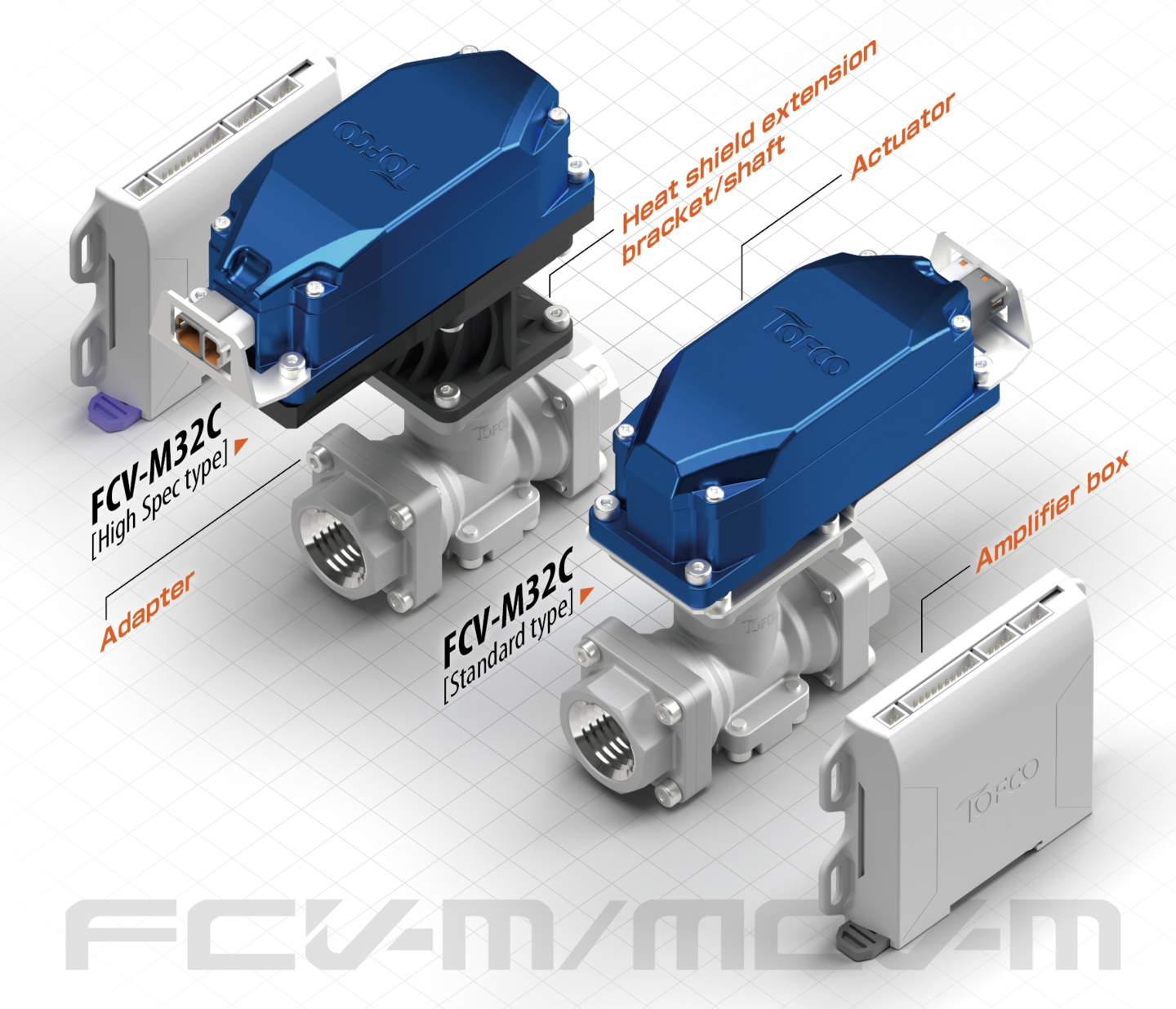

Flow Control Valve with Wide Temperature range	FCV-M/MCV-M are small and grease free flow control valve with wide range of temperature capability.FCV-M is 2 ports flow control valve and MCV-M is 3 ports mixing control valve. Utilizeing unique design of valve stracture with enhanced AD converter has enabled high presition and high resolution control.Together with Tofpine system it provides freedumin design of liquid distribution (except MCV-M)

Features	・FCV-M / MCV-M are small and grease free flow control valve with wide range of temperature capability. ・FCV-M is 2 ports flow control valve and MCV-M is 3 ports control valve. ・Utilizeing unique design of valve stracture with enhanced AD converter has enabled high presition and high resolution control. ・Together with Tofpine system it provides freedumin design of liquid distribution (except MCV-M)

・FCV-M / MCV-M are small and grease free flow control valve with wide range of temperature capability.

・FCV-M is 2 ports flow control valve and MCV-M is 3 ports control valve.

・Utilizeing unique design of valve stracture with enhanced AD converter has enabled high presition and high resolution control.

・Together with Tofpine system it provides freedumin design of liquid distribution (except MCV-M)

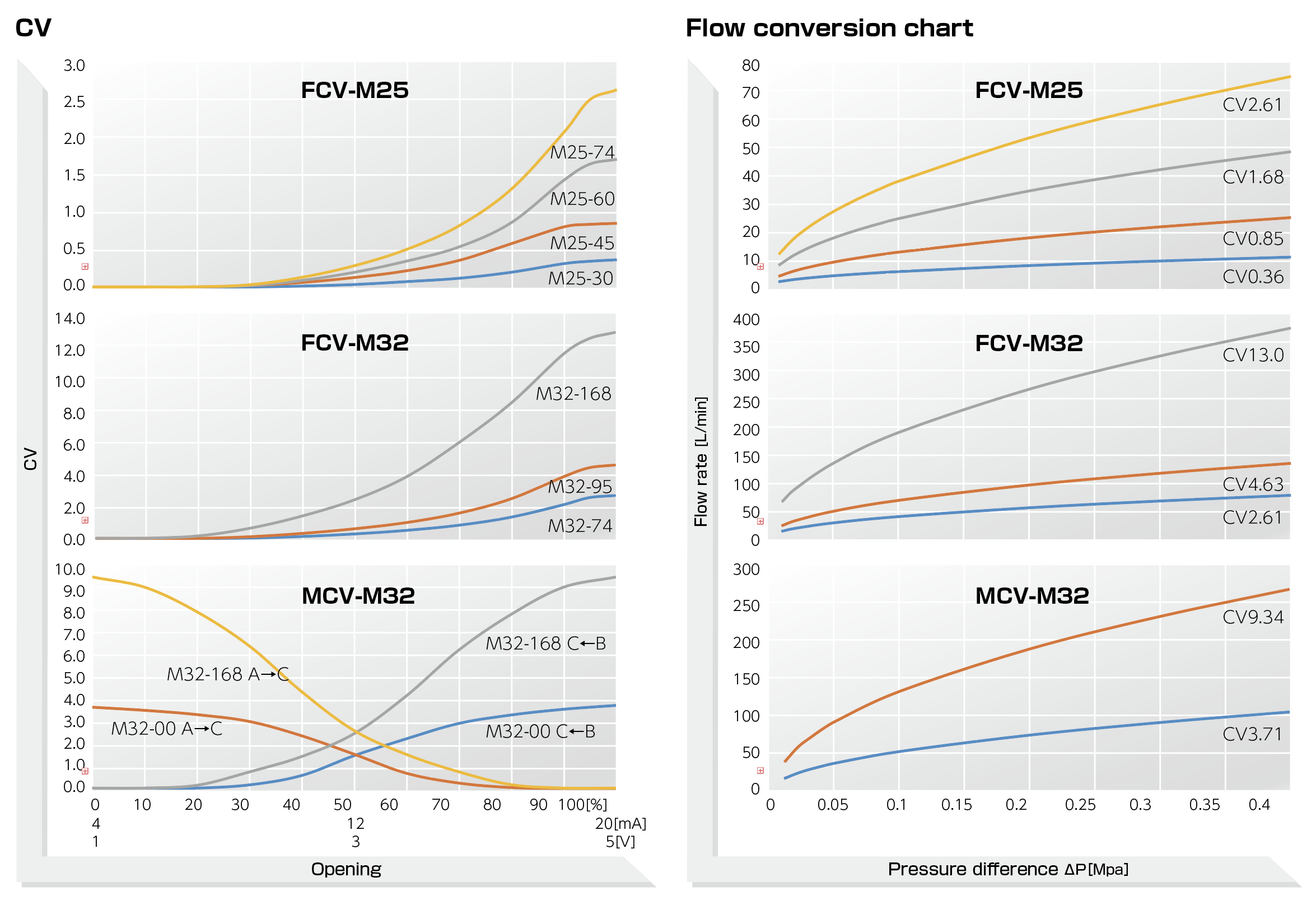

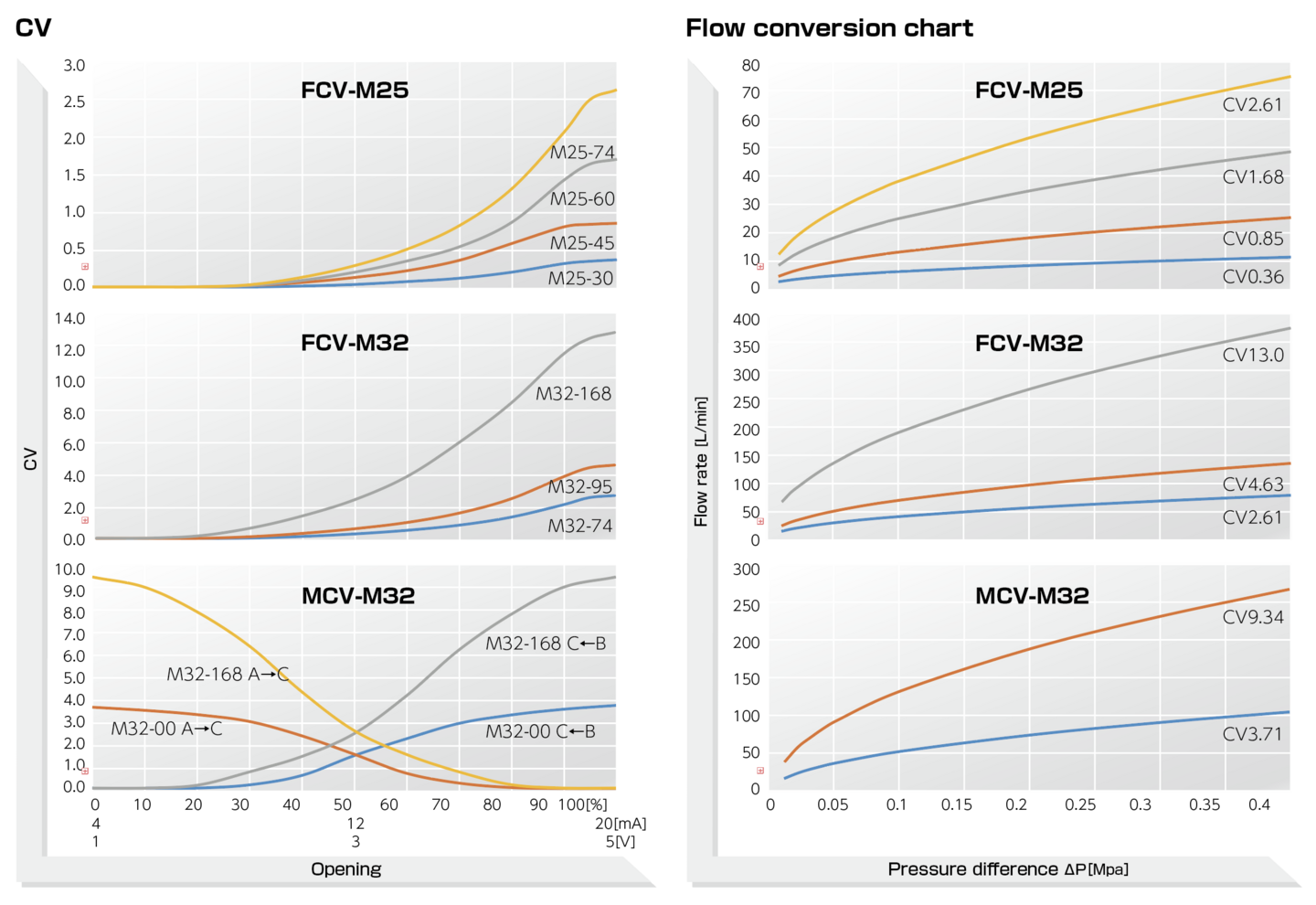

Flow characteristic

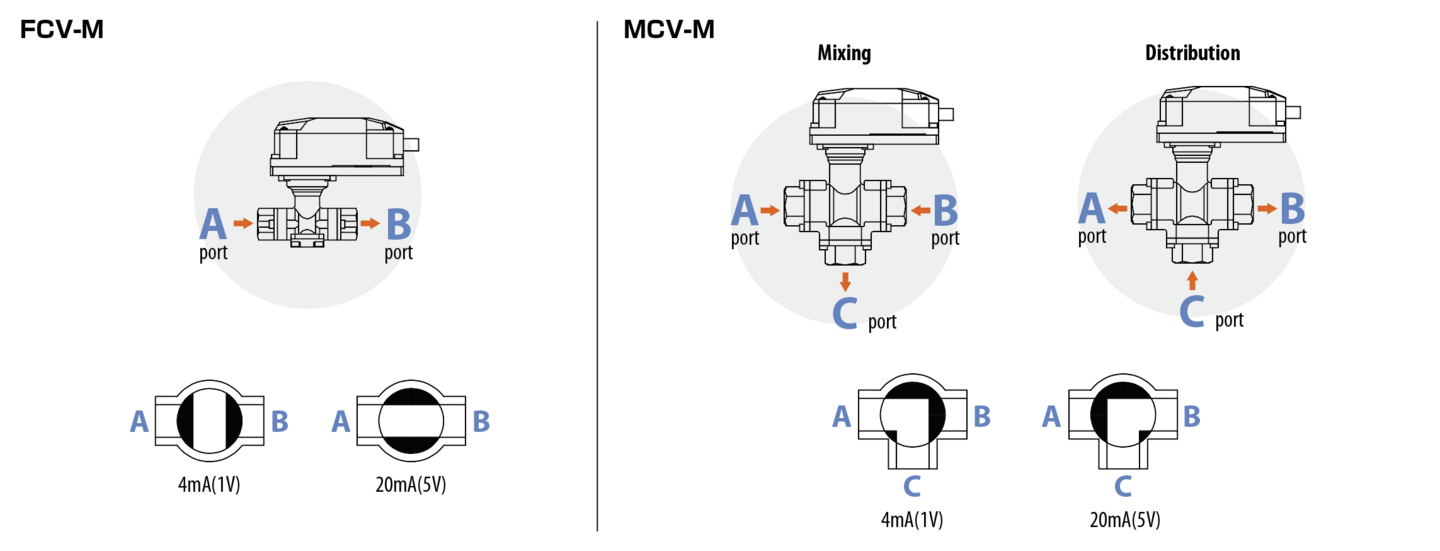

Switching form

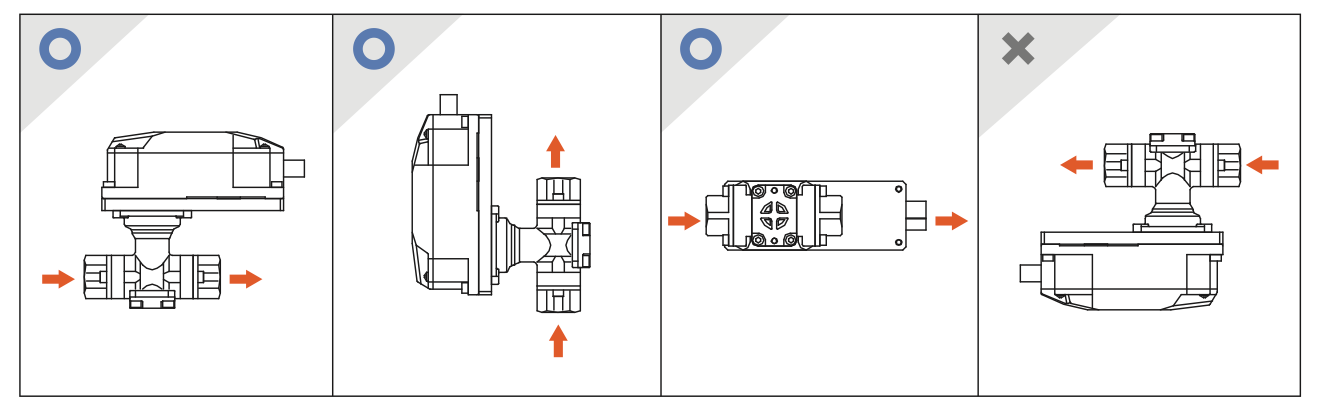

Installation attitude

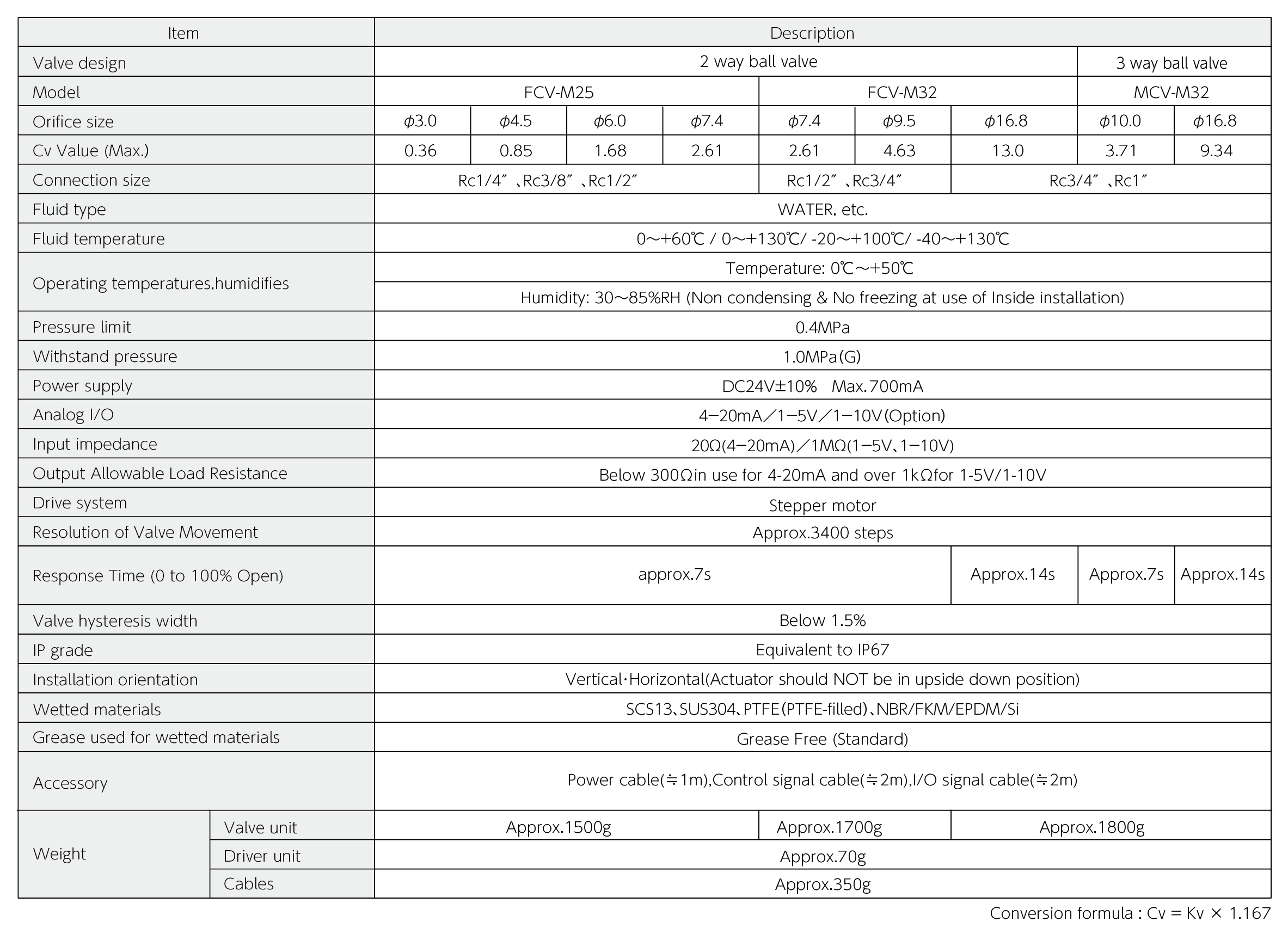

Specifications

For Liquid
