ULVIT

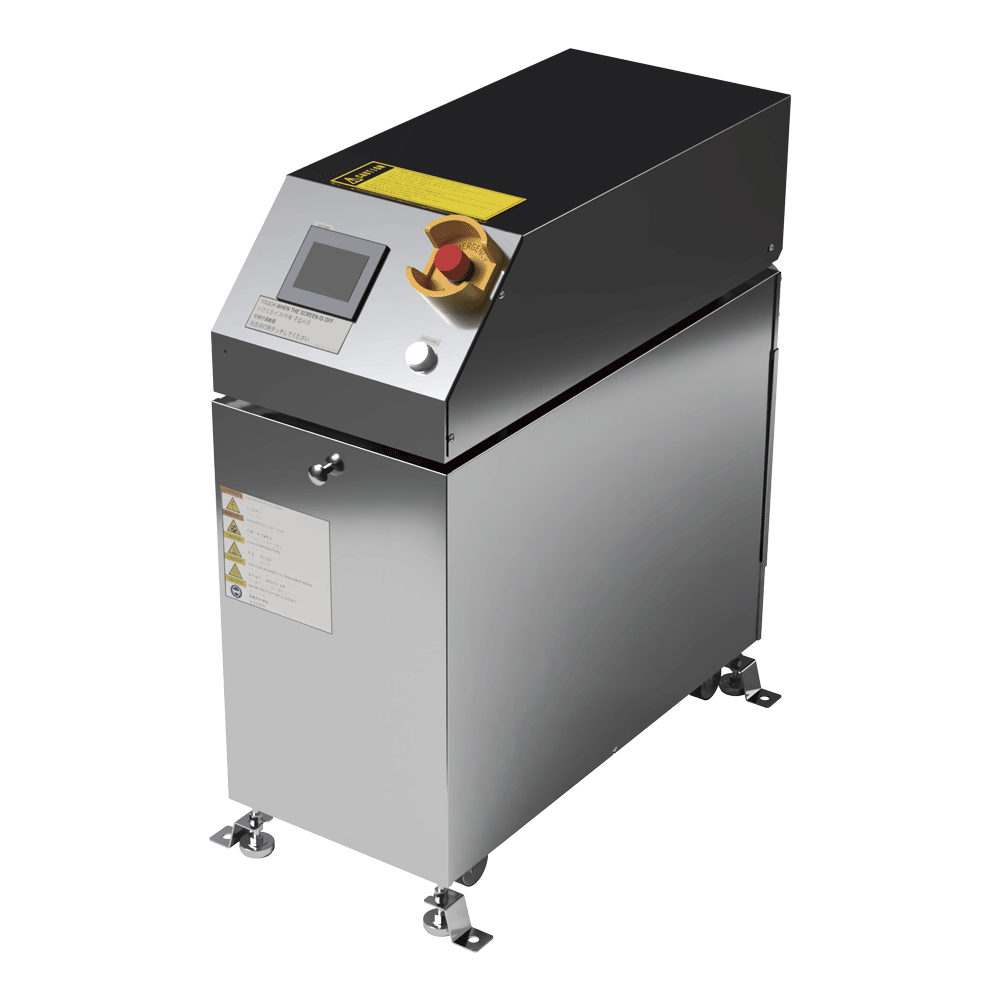

ULVIT is a Ozonated Water Decomposer that uses a high-power UV lamp to instantly decompose ozone dissolved in the fluid. Compared to the activated carbon/bubbling method, this ULVIT can save space.
Usable with ozone containing hydrofluoric acid
ULVIT decomposes ozone dissolved in the fluid by using a high-power germicidal lamp that efficiently emits a wavelength of 253.7nm germicidal ray using a low-pressure mercury arc discharge method. The wetted parts are made our of SS material, and it uses a quartz tube to protect the UV lamp to ensure excellent cleanliness and chemical resistance. It is mainly suitable for a line in which ozone water is generated.
Most suitable for DI water recycling
Unlike other adsorption methods such as the activated carbon, ULVIT uses UV to directly decompose dissolved ozone. Thus, there are no outflows from the outlet, making it the most suitable for DI water recycling.
使用例
分析データ
M-Type
Application example
Specifications
| Fluid treated |
Pure ozone water (Turbidity 0） |
|---|---|
| Concentration of ozone water on inet side |
20ppm or lower |
| Flow rate of ozone water on inlet side |
20L/min or lower |
| Ability to decompose |
Ozone water concentrarion of 90% or higher on inlet side |
| Power source |
Three-phase 200VAC |
| Power consumption |
350W |
| Connection sizes |
Rc1/2" |
| Drain |
Rc1/2" |
| Vat drain |
Rc1/2" |
| Housing |
SS |
| Alarm output |
Lamp error, leak, door, lamp life |
| Fluid treated | Ozone water containing HF（Turbidity 0） |
|---|---|
| Concentration of ozone water on inlet side | 20ppm or lower |
| Flow rate of ozone water on inlet side | 5L/min or lower |
| Ability to decompose | Ozone water concentration of 90% or higher |
| Power source | Three-phase 200VAC |
| Power consumption | 350W |
| Connection sizes | Rc1" |
| Drain | Rc1/2" |
| Vat drain | Rc1/2" |
| Housing | SS |
| Alarm output | Lamp error, leak, door, lamp life |
L-Type
Application example
Specifications
| Fluid treated |
Pure ozone water (Turbidity 0） |
|---|---|
| Concentration of ozone water on inlet side |
①40ppm or lower, ②20ppm or lower |
| Flow rate of ozone water on inlet side |
①20ppm or lower, ②40ppm or lower |
| Ability to decompose |
Ozone water concentration of 90% or higher on inlet side |
| Power source |
Three-phase 200VAC |
| Power consumption |
490W |
| Connection sizes |
JIS10K30A Flange |
| Drain |
Rc1/2" |
| Vat drain |
Rc1/2" |
| Housing |
SS |
| Alarm output |
Lamp error, leak, door, lam life |
| Fluid treated |
Ozone water containing HF（Turbidity 0） |
|---|---|
| Concentration of ozone water on inlet side |
20ppm or lower |
| Flow rate of ozone water on inlet side |
10L/min or lower |
| Ability to decompose |
Ozone water concentrarion of 90% or higher |
| Power source |
Three-phase 200VAC |
| Power consumption |
490W |
| Connection sizes |
JIS10K30A Flange |
| Drain |
Rc1/2" |
| Vat drain |
Rc1/2" |
| Housing |
SS |
| Alarm output |
Lamp error, leak, door, lamp life |
※ Some model numbers in the L-Type are subject to the Export Trade Control Order; therefore export procedures are required in accordance with the law. Contact us for more detail.
